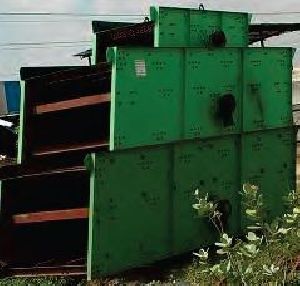

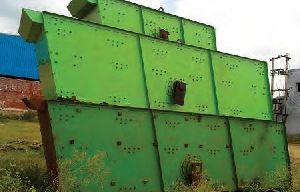

Vibrating Screen


Vibrating Screen

Specifications

Material Stainless Steel
Application Powders And Liquid
Grade Excellent
Voltage 380V
Warranty 12 Months
Working Condition Continuous Type

Shredder for Biomass : Biomass feedstock comes mainly from two areas the agricultural and forest industry. These two sources of biomass fuel provide the maximum feedstock material for the production of biomass energy. Other potential sources of biomass include high energy crops and agricultural residue such as corn Stover. To help achieve cost-effectiveness, the production of energy frorn agriculture and forestry feedstock requires the use of biomass fuel equipment. Biomass shredders reduce biomass into small pieces for handling purposes, enhancing size reduction, and subsequently create a suitable feed for the production of fuel from biomass. Biomass waste shredding not only aids in the transformation of waste into valuable renewable energy, but improves recycling efficiency and lowers landfill volumes. Biomass shredding equipment especially facilitates the processing of untreated biomass, a critical step in the production of renewable energy from waste.


Yes! I am interested

Submit Your Requirement




Technical Specification

Screen Spec. Screen Deck Screen Mesh
(mm)
Feeder Opening
(mm)
Capacity (t/h) Power
(kw)
Vibrating
Frequency (r/min)
Double Amplitude (mm)
1200x3700 2 4-50 200 10-80 15 960 4-8
1200x3700 3 18-54 200 29-95 15 960 4-8
4800x1500 2 3-100 400 30-275 15 870 5-9
4800x1500 3 3-100 400 30-275 15 870 5-9
4800x1500 4 3-100 400 30-275 15 870 5-9
4800x1800 2 3-100 400 56-330 18.5 870 5-9
4800x1800 3 3-100 400 56-330 18.5 870 5-9
4800x1800 4 3-100 400 56-330 18.5 870 5-9
6000x1800 2 3-100 400 65-586 22 870 5-9
6000x1800 3 3-100 400 65-586 22-30 870 5-9
6000x1800 4 3-100 400 65-586 22-30 870 5-9
6000x2100 2 3-100 400 81-720 30 730 5-9
6000x2100 3 3-100 400 81-720 30-37 730 5-9
6000x2100 2 3-150 400 100-810 37 770 5-9
